STM8S003F3P6TR STMicroelectronics
  • Air ProSTM8S003F3P6TR STMicroelectronics

STM8S003F3P6TR STMicroelectronics

You can rest assured to buy XT-ShenZhen® STM8S003F3P6TR STMicroelectronics from us. STM8S003F3P6TR STMicroelectronics was developed and produced by STMicroelectronics (ST) as an excellent 8-bit microcontroller MCU. Suitable for a wide range of applications in the industrial, consumer, and computer markets. Wide range of applications and a very good price-performance ratio. You can rest assured to buy product from XT-ShenZhen®. We look forward to cooperating with you, if you want to know more, you can consult us now, we will reply to you in time!

Send Inquiry    PDF Download

Product Description

STM8S003F3P6TR STMicroelectronics was developed and produced by STMicroelectronics (ST) as an excellent 8-bit microcontroller MCU. Suitable for a wide range of applications in the industrial, consumer, and computer markets. Wide range of applications and a very good price-performance ratio. For more original, cost-effective electronic components, please contact XT-ShenZhen® !!!



Product description



The STM8S003F3P6TR STMicroelectronics offers 8 KB of flash memory, as well as an integrated true data EEPROM. In the STM8S microcontroller family, they are referred to as low-density devices.

The STM8S003F3P6TR STMicroelectronics device has a true data EEPROM that can support up to 100,000 write/erase cycles, advanced cores and peripherals, and advanced technology with a clock frequency of 16 MHz, powerful I/O, and a standalone watchdog with an independent clock source, thus ensuring the safety of device performance. 16 MHz advanced STM8 core with Harvard architecture and 3-stage pipeline. System cost is reduced due to high system integration with the internal clock oscillator, watchdog, and Undervoltage reset.



Product features



• 16 MHz advanced STM8 core with Harvard architecture and 3-stage pipeline

• Extended instruction set memory

• Program memory: 8 KB flash memory; After 100 cycles, data are retained at 55 °C for 20 years

• Data memory: 128 bytes of real data EEPROM; Endurance up to 100,000 write/erase cycle clocks, resets, and power management

•2.95 to 5.5 V operating voltage

• Flexible clock control, 4 main clock sources:

– Low power crystal resonator

– External clock input

– User-adjustable internal 16 MHz RC

– Internal low power 128 kHz RC

• Clock security system with clock monitor

• Energy Management:

– Low power mode (wait, active stop, stop).

– Turn off the peripheral clocks separately

• Permanent, low power-on and power-down reset



Product parameters



Technical parameters

frequency

16MHz

Operating voltage

2.95V ~ 5.5V

The number of pins

20

RAM size

1K*8

Number of digits

8

Number of inputs/outputs

16 Input

Operating temperature (Max).

85℃

Operating temperature (Min).

-40℃

Dissipated power (Max).

238mW

Supply voltage

2.95V-5.5V

encapsulation

TSSOP-20

Packaging

Tape & Reel (TR)

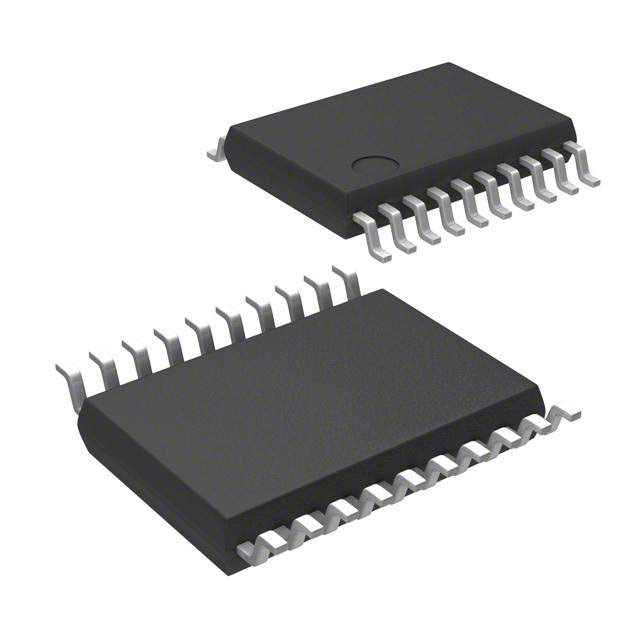

Product images





FAQ



Q: Are your shipments fast?
A: Yes, we have our own warehouse, and STM8S003F3P6TR STMicroelectronics are in stock. Same-day delivery can be achieved as soon as possible.

Q: Are you a trader or a manufacturer?

A: Yes, we are traders. Most of the products we sell are purchased directly from the factory.

Q: How long do you need to give me a quote?

A: On weekdays, after receiving your information, a quote will be sent to you within the same day
