MC33035DWR2G

Professional supplier XT-ShenZhen introduces MC33035DWR2G equipment for you, you can buy it with confidence! The MC33035DWR2G device is ON Semiconductor's high-performance single-chip brushless DC motor controller. It is a motor driver with excellent performance. XT-ShenZhen has regular channels of supply and compliance quality inspection reports. We insist on providing customers with high-quality supply, and welcome all new and old customers to cooperate with us!

Send Inquiry

Product Description

Professional supplier XT-ShenZhen introduces MC33035DWR2G equipment for you, you can buy it with confidence! The MC33035DWR2G device is ON Semiconductor's high-performance single-chip brushless DC motor controller. It is a motor driver with excellent performance. XT-ShenZhen has regular channels of supply and compliance quality inspection reports. We insist on providing customers with high-quality supply, and welcome all new and old customers to cooperate with us!



Product Description



The MC33035DWR2G device is a high-performance second-generation monolithic brushless DC motor controller with all the active functions required to implement a fully functional open-loop three-phase or four-phase motor control system.

The MC33035DWR2G device includes a frequency programmable sawtooth oscillator, a rotor position decoder for proper commutation sequencing, a temperature compensated reference capable of supplying sensor power, three open collector top drivers and three ideal for driving power MOSFETs of large MOSFETs. Current totem pole bottom drive.

The MC33035DWR2G device also includes protection features including undervoltage lockout, internal thermal shutdown, a unique fault output that can be connected to a microprocessor control system, cycle-by-cycle current limit, and an optional time-delayed latch shutdown mode. There are also typical motor control functions including open loop speed, forward or reverse, run enable and dynamic braking.



product features



•10 to 30 V operation

•Undervoltage lockout

•6.25 V reference voltage provides sensor power

•Fully accessible error amplifier for closed-loop servo applications

•High current driver controls external three-phase MOSFET bridge

•Cycle-by-cycle current limit

•Fixed - output current sense reference

•Internal thermal shutdown

•Selectable 60°/300°or 120°/240°sensor phase

•Efficient control of brushed DC motors with external MOSFET H-bridge

•NCV prefix for automotive and other applications requiring unique field and control change requirements; AEC-Q100 qualified and PPAP capability available

•Lead-free package



Product parameters



Product parameters



Halogen free state

Halogen Free

Number of output ports

6

The output voltage

40 V

Output current

50 mA

Supply current

14 mA

Dissipated power

650 mW

Rise Time

107 ns

fall time

26 ns

Operating temperature (Max)

85℃

Working temperature(Min)

-40℃

Power supply voltage (Max)

30 V

Power supply voltage (Min)

10 V

Number of pins

24

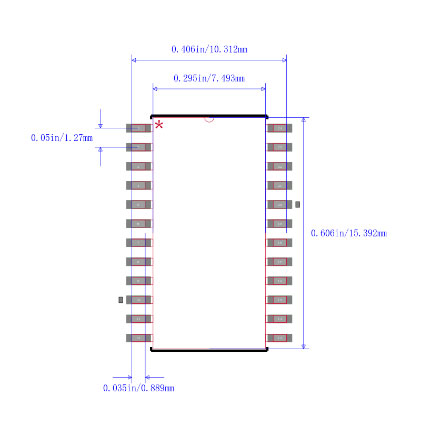

package

SOIC-24

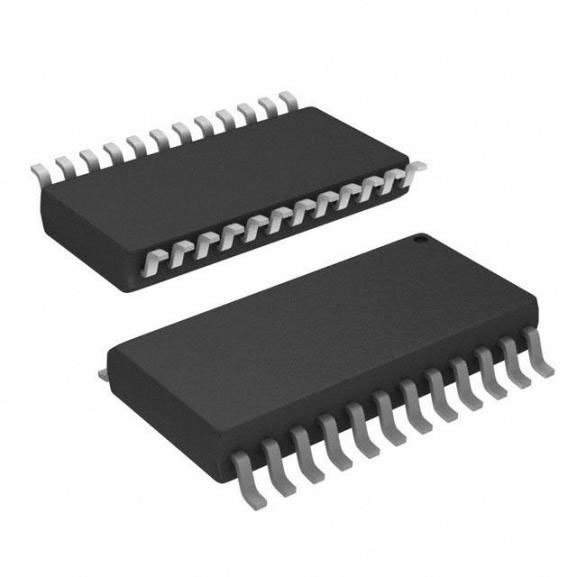

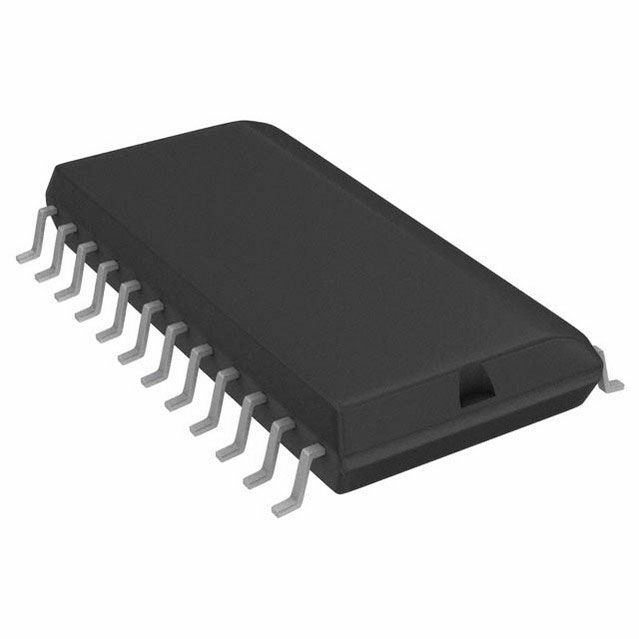

Product picture




FAQ



Q: How do you ensure the safe transportation of goods?

A: We cooperate with professional multinational logistics companies to ensure the safety of cargo transportation.



Q: Which clients have you served?

A: We have provided services and maintained cooperative relationships with many well-known companies, including top 10 companies in the automotive industry.



Q: How big is your warehouse?

A: Our company warehouse area is 500m2, and a lot of stock has been placed.
