L9679PTR

XT-ShenZhen provides you with the original L9679PTR device in stock, if you need more, please contact us! Developed by STMicroelectronics, the L9679PTR device is an advanced airbag IC. It's perfect for low to mid range applications! XT-ShenZhen focuses on solving the problem of component shortage for customers, we will reply customer's message within 24 hours!

Send Inquiry

Product Description

L9679PTR STMicroelectronics



XT-ShenZhen provides you with the original L9679PTR device in stock, if you need more, please contact us! Developed by STMicroelectronics, the L9679PTR device is an advanced airbag IC. It's perfect for low to mid range applications! XT-ShenZhen focuses on solving the problem of component shortage for customers, we will reply customer's message within 24 hours!



ProductDescription



The L9679PTR device was created for the mature airbag market and the integrated safety market. It is compatible with L9678, L9680 and other devices. The device uses small, inexpensive external components, coupled with a high-frequency power supply design that reduces cost.

The switching regulator for this product operates at 1.882 MHz. Its quiescent current is small and can be directly connected to the battery. Therefore, the wakeup input function of the device can control activation and deactivation.



Features



•AEC-Q100 certified

•Boost regulator for energy reserve

–Operating frequency 1.882 MHz, Iload = 55 mA (max)

•Boost regulator for PSI-5 sync pulses

–Output voltage, 12 V/14.75 V, user configurable

•Buck regulator for remote sensor

–Operating frequency 1.882 MHz

•Buck regulators for microcontroller units

–Operating frequency 1.882 MHz

–3Ω

–912 mA (max)

–Switch activity output indicator

–8-channel HSD/LSD

–Current monitoring

–High-side and low-side driver FET testing

•High-side de-switching regulator and enable control

–PSI-5 satellite sensor

•Specific disengagement signal for passenger airbag

•Scrap handling interface



Product parameters



Operating temperature (maximum)

95 ℃

Operating temperature (minimum)

-40 ℃

Voltage

5.5 V

installation method

Surface Mount

Number of pins

100

package

TQFP-100

Product Lifecycle

Active

Package

Tape & Reel (TR)

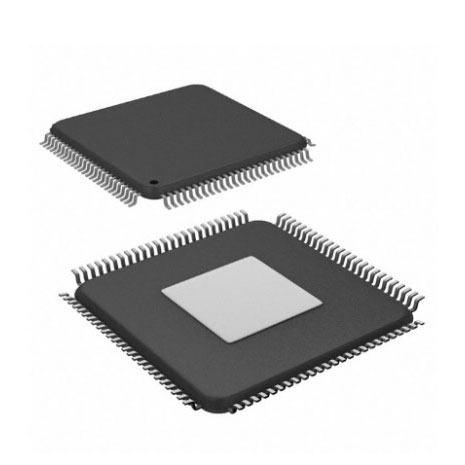

Product Image




FAQ



Q: Do your products have test reports?

A: Our products have been tested by professional testing institutions and have qualified testing reports.



Q: Are your product sources guaranteed to be legal and compliant?

A: Our product source channels are guaranteed to be legal and compliant, and 100% are original products.



Q: What is your main product?

A: We supply Texas Instruments components, XILINX components, MCU, IGBT and STM32F for a long time.
