STM32F413VGT6

XT-ShenZhen, who always pays attention to the electronic components market, will introduce the STM32F413VGT6 device to you! The STM32F413VGT6 device is a high-performance basic series ARM Cortex-M4 MCU with DSP and FPU with 1 MB Flash, 100 MHz CPU, ART accelerator and DFSDM, ideal for motor drive and application control, medical equipment, mobile phone sensor sets line, industrial applications (PLC, inverter, circuit breaker), wearable devices, etc. If you have any questions, please leave us a message, we will answer every customer's question within 24 hours! You give us a trust and we are very satisfied with you!

Send Inquiry

Product Description

XT-ShenZhen, who always pays attention to the electronic components market, will introduce the STM32F413VGT6 device to you! The STM32F413VGT6 device is a high-performance basic series ARM Cortex-M4 MCU with DSP and FPU with 1 MB Flash, 100 MHz CPU, ART accelerator and DFSDM, ideal for motor drive and application control, medical equipment, mobile phone sensor sets line, industrial applications (PLC, inverter, circuit breaker), wearable devices, etc. If you have any questions, please leave us a message, we will answer every customer's question within 24 hours! You give us a trust and we are very satisfied with you!



Product Description



The STM32F413VGT6 device uses a high-performance Arm ® Cortex ® -M4 32-bit RISC core operating at up to 100 MHz. The Arm ® Cortex ® -M4 core features floating-point unit (FPU) single-precision and supports all Arm single-precision data processing instructions and data types. It also implements a full set of DSP instructions and a memory protection unit (MPU) for enhanced application security.

The STM32F413VGT6 device also integrates high-speed embedded memory (with up to 1.5 MB of Flash, 320 KB of SRAM) and connections to two APB buses, three AHB buses and a 32-bit multi-AHB bus matrix.

The STM32F413VGT6 device is part of the STM32F4 access product line (products combine power efficiency, performance and integration), and is special in adding the innovative feature of batch acquisition mode (BAM), which can save more power during data batch processing.

The STM32F413VGT6 device features standard and high-level communication interfaces, providing a 12-bit ADC, two 12-bit DACs, a low-power RTC, twelve general-purpose 16-bit timers, including two PWM timers for motor control, two General-purpose 32-bit timer and one low-power timer.



Features



●Dynamic Efficiency Line with eBAM (Enhanced Batch Acquisition Mode)

–1.7 V to 3.6 V supply

–40°C to 85/105/125°C temperature range

●Core: Arm® 32-bit Cortex®-M4 CPU with FPU, Adaptive Real-Time Accelerator (ART Accelerator™) allows 0 wait state execution from flash memory, frequency up to 100 MHz, memory protection unit, 125 DMIPS/1.25 DMIPS/MHz ( Dhrystone 2.1) and DSP instructions

●Memories

–Up to 1.5 MB flash memory

–320 KB of SRAM

–Flexible external static memory controller with up to 16-bit data bus: SRAM, PSRAM and NOR flash

–Dual Mode Quad SPI Interface

LCD parallel interface, 8080/6800 mode

●2x12 bit D/A converter

●1×12-bit 2.4 MSPS ADC: up to 16 channels

●6 digital filters for sigma-delta modulator, 12 PDM interfaces, support for stereo microphone and sound source localization

●Universal DMA: 16-stream DMA

●Up to 114 I/O ports with interrupt function

–Up to 109 fast I/Os up to 100 MHz

–Up to 114 five-V fault tolerant I/Os



Product parameters



Product parameter

frequency

100MHZz

RAM size

320

FLASH memory capacity

1.5 MB

Input/output number

81Input

Working temperature(Max)

85℃

Working temperature(Min)

-40℃

Power supply voltage


1.7V-3.6V

Number of pins


100

seal and package


LQFP-100

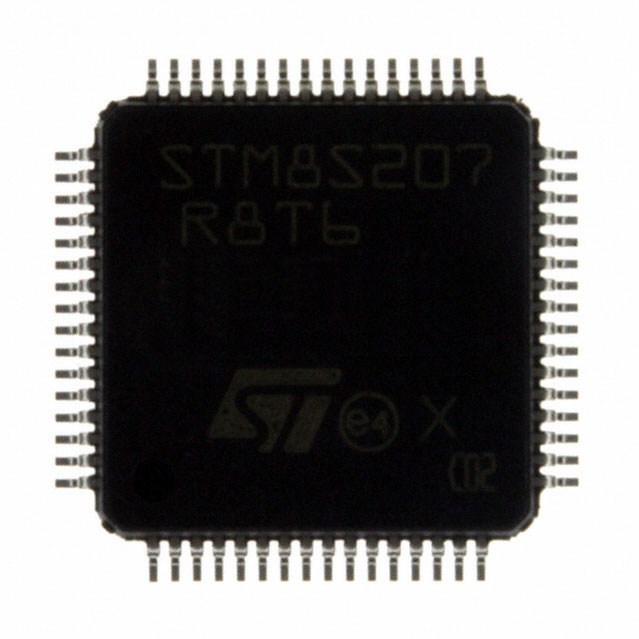

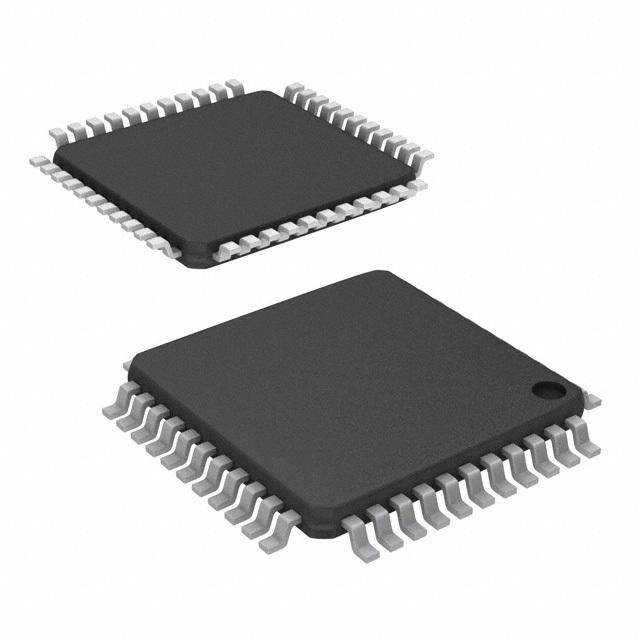

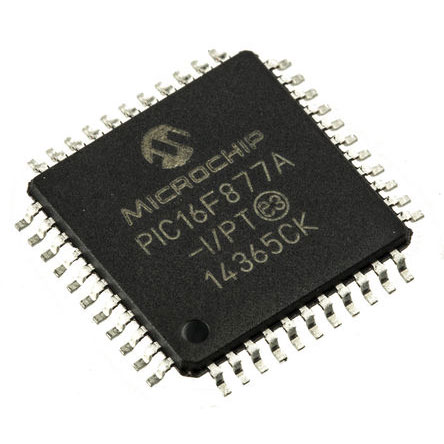

Product picture





FAQ



Q: How to contact you?

A: Please leave your email and questions in the message box at the bottom of the page, we will reply you within 24 hours!



Q: Does your company have professional inspectors?

A: Yes, in order to ensure product quality, we have hired a number of professionals.



Q: How long does it take for you to respond to emails?

A: We will reply your email within 24 hours!
