STM8S207R8T6

Chinese supplier XT-ShenZhen provides you with STM8S207R8T6 chip.STM8S207R8T6is a mainstream enhanced 8-bit MCU product independently developed by STMicroelectronics, with 64 KB Flash, 24 MHz CPU and integrated EEPROM. It offers the following advantages: reduced system cost, robust performance, short development cycles and long product life. If you want to know more, please leave us a message, XT-ShenZhen will reply to your message within 24 hours!

Product Description

The STM8S207R8T6 is referred to as a high-density device in the STM8S Microcontroller Family Reference Manual.

The STM8S207R8T6 eight-bit microcontroller offers up to 64KB of Flash program memory, the device has both an integrated real data EEPROM with up to 300k write/erase cycles and a high level of system integration with internal clock oscillator, watchdog and power-down reset , thus reducing the system cost.

The performance of the STM8S207R8T6 device is ensured by enhanced features such as 20 MIPS at 24 MHz CPU clock frequency and robust I/O, independent watchdog (with separate clock source), clock safety system.

Due to the STM8S207R8T6's application scalability in a common family product architecture with compatible pinout, memory mapping and modular peripherals, it has a short development cycle and offers complete documentation and a choice of development tools.

The advanced cores used in the products of the STM8S series make their longevity guaranteed. They are manufactured with a core using state-of-the-art technology and are suitable for applications from 2.95 V to 5.5 V operating supplies.

The above excellent features make the STM8S207R8T6 device have the following advantages: reduced system cost, robust performance, short development cycle and long product life.

Product Features

●Kernel

Max f CPU: up to 24 MHz, 0 wait states @ f CPU≤16 MHz

Advanced STM8 core with Harvard architecture and 3-stage pipeline

Extended instruction set

Up to 20 MIPS @ 24 MHz

●Memories

Program: Up to 128 KB Flash; 20 years data retention at 55°C after 10 kcycles

Data: Up to 2 KB of real data EEPROM; 300kcycles battery life

RAM: up to 6 KB

Clock, Reset and Power Management

2.95 to 5.5 V operating voltage

Low Power Crystal Resonator Oscillator

●External clock input

Internal, user-trimmable 16 MHz RC

Internal low power 128 kHz RC

Clock Security System with Clock Monitor

Wait, Active Suspend, and Suspend Low Power Modes

Peripheral clocks are turned off individually

Permanently active, low-power power-up and power-down reset

●Interrupt management

Nested Interrupt Controller with 32 Interrupts

Up to 37 external interrupts on 6 vectors

●Timer

2 16-bit general purpose timers with 2+3 CAPCOM channels (I2C, OC or PWM)

Advanced Control Timer: 16-bit, 4 CAPCOM channels, 3 complementary outputs, dead-time insertion and flexible synchronization

8-bit basic timer with 8-bit prescaler

Automatic wake-up timer

Window watchdog, independent watchdog

●Communication interface

High-speed 1 Mbit/s active beCAN 2.0B

UART with clock output for synchronous operation - LIN master mode

UART with LIN 2.1 Compatibility, Master/Slave Mode and Auto-Resync

SPI interface up to 10 Mbit/s

I 2 C interface up to 400 Kbit/s

10-bit ADC with up to 16 channels

●Input/Output

Up to 68 I/Os on 80-pin package, including 18 high-sinking outputs

Highly robust I/O design unaffected by current injection

development support

Single Wire Interface Module (SWIM) and Debug Module (DM)

96-bit unique ID key for each device

Product parameters

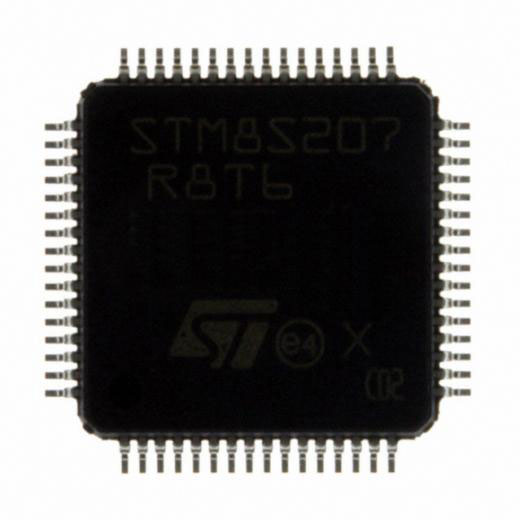

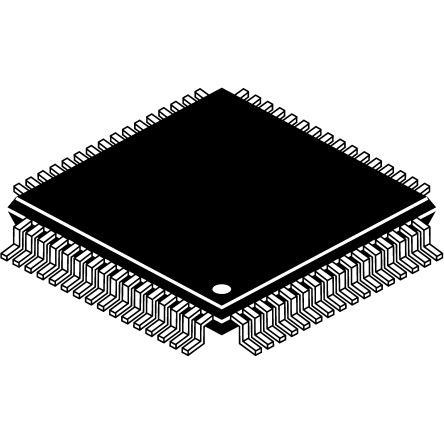

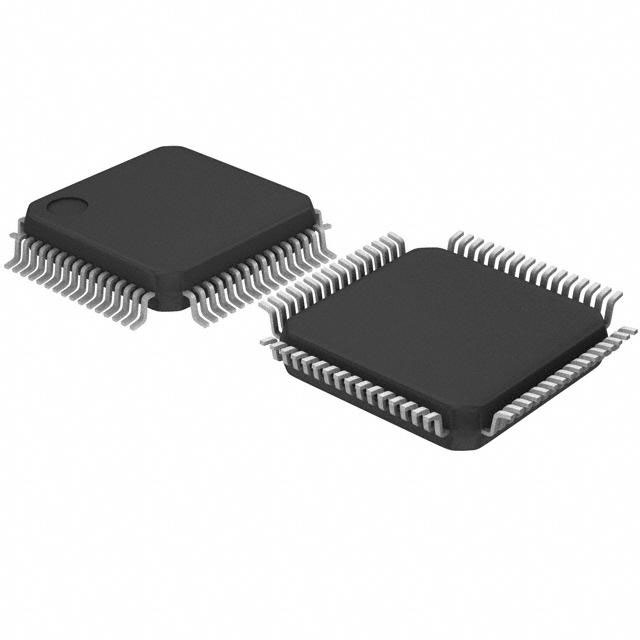

Product picture
