ATMEGA328P-AU

XT-ShenZhen provides you with more detailed information about ATMEGA328P-AU, I hope to help you! In addition to the ATMEGA328P-AU, an 8-bit AVR® microcontroller recommended for automotive designs, it has been tested and qualified to AEC-Q100 requirements and has been designed, developed and manufactured to meet automotive industry standards Robustness, quality and reliability requirements. If you have any need, please feel free to leave us a message, we will reply you within 24 hours! Your satisfaction is our unremitting pursuit!

Send Inquiry

Product Description

XT-ShenZhen provides you with more detailed information about ATMEGA328P-AU, I hope to help you! In addition to the ATMEGA328P-AU, an 8-bit AVR® microcontroller recommended for automotive designs, it has been tested and qualified to AEC-Q100 requirements and has been designed, developed and manufactured to meet automotive industry standards Robustness, quality and reliability requirements. If you have any need, please feel free to leave us a message, we will reply you within 24 hours! Your satisfaction is our unremitting pursuit!



Product Description



The ATMEGA328P-AU is a high-performance, low-power AVR® 8-bit microcontroller based on an advanced RISC architecture that combines 32KB of ISP Flash (with simultaneous read and write capability), 1024B of EEPROM, and 2 KB of SRAM. It also features 23 general purpose I/O lines, 32 general purpose working registers, three flexible timer/counters with compare modes, internal and external interrupts, serial programmable USART, byte-oriented two-wire serial interface, SPI serial port, 6-channel 10-bit A/D converter (8 in TQFP and QFN/MLF packages), programmable watchdog timer with internal oscillator, and five software-selectable power saves model.

By executing powerful instructions in a single clock cycle, the ATMEGA328P-AU achieves throughputs approaching 1 MIPS/MHz, balancing power consumption and processing speed.



product features


●131 powerful instructions - mostly single clock cycle execution

●Fully static operation

●On-chip 2-cycle multiplier

●High-endurance non-volatile memory segment

●Write/erase cycles: 10000 Flash/100000 EEPROM

●Optional boot code segment with independent lock bits

●In-system programming via on-chip bootloader

●True read and write operations

●Software security programming lock

●Peripheral functions

●6 PWM channels

●8-channel 10-bit ADC in TQFP and QFN/MLF packages



Product parameters



Product parameters



frequency

20MHz

RAM size

2KB

number of digits

8

FLASH memory capacity

32KB

Number of inputs/outputs

23Input

Supply voltage (Max)

5.5V

Power supply voltage (Min)

1.8V

Working temperature (Max)

85℃

Working temperature (Min)

-40℃

Number of pins

326+

package

TQFP-32

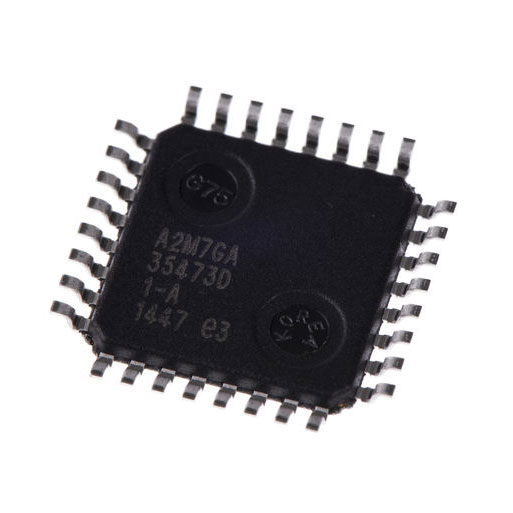

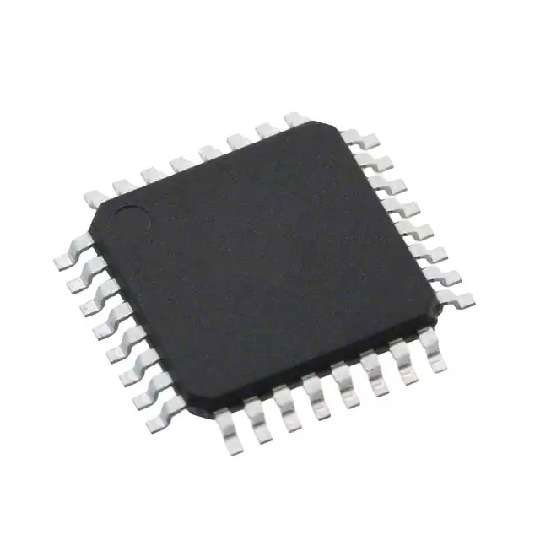

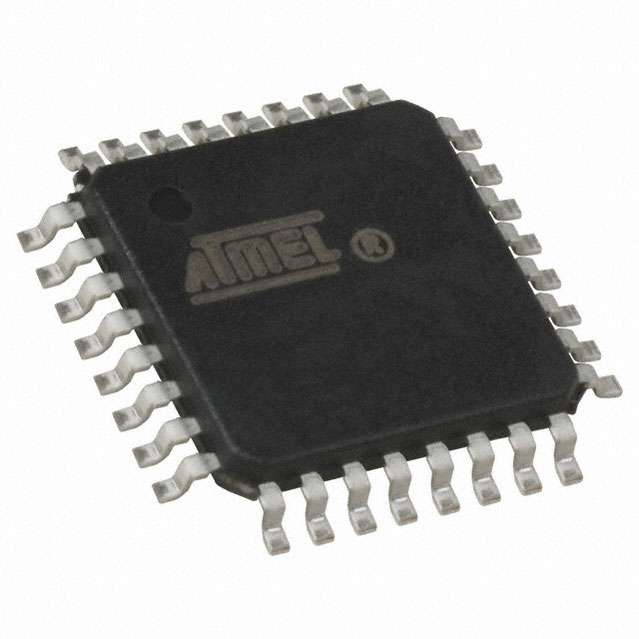

Product picture

FAQ



Q: What is your MOQ?

A: We will decide according to the product packaging method, and will communicate with you in time before placing an order.



Q: How do you pack your goods?

A: Each of our shipments is vacuumed and filled and packed. Make sure there is no damage during shipping.



Q: Are your products genuine?

A: Yes, all products sold by our company are produced by the original factory, and the original factory is guaranteed.
