KSZ9031RNXIA

XT-ShenZhen company introduces you about the KSZ9031RNXIA device! The KSZ9031RNXIA device is an RGMII Gigabit Ethernet transceiver that supports the RGMII datasheet for transmitting and receiving data over standard Category 5 Unshielded Twisted Pair (UTP) cables. XT-ShenZhen will provide you with high-quality spot and fair prices, welcome all new and old customers to cooperate with us, we will be honored and serve you wholeheartedly!

Send Inquiry

Product Description

XT-ShenZhen company introduces you about the KSZ9031RNXIA device! The KSZ9031RNXIA device is an RGMII Gigabit Ethernet transceiver that supports the RGMII datasheet for transmitting and receiving data over standard Category 5 Unshielded Twisted Pair (UTP) cables. XT-ShenZhen will provide you with high-quality spot and fair prices, welcome all new and old customers to cooperate with us, we will be honored and serve you wholeheartedly!



Product Description



The KSZ9031RNXIA is a fully integrated triple-speed Ethernet physical layer transceiver that provides a simplified Gigabit Media Independent Interface (RGMII) for direct connection to the RGMII MAC in Gigabit Ethernet processors and switches to Realize 10/100/1000 Mbps data transfer. The KSZ9031RNXIA simplifies board layout and reduces board cost by driving low-cost MOSFETs for four differential pairs using on-chip termination resistors and an integrated LDO controller to power a 1.2V core. To facilitate system startup and debugging in production testing and product deployment, the KSZ9031RNXIA also provides diagnostic functions. Parametric NAND tree support supports fault detection between the KSZ9031 I/O and the board. LinkMD® TDR-based cable diagnostics identify faulty copper cables. Remote and local loopback capabilities verify analog and digital data paths.



product features



•Single-chip 10/100/1000 Mbps Ethernet transceiver for IEEE 802.3 applications

•As per RGMII version 2.0, RGMII timing supports on-chip delays, has external delay programming options, and adjusts and corrects TX and RX timing paths

•RGMII with 3.3V/2.5V/1.8V fault tolerant I/O

•On-chip LDO controller supporting operation from a single 3.3V supply - only one external FET is required to generate 1.2V for the core

•Supports jumbo frames up to 16 KB

•125 MHz reference clock output

•Support Wake-on-LAN (WOL) with powerful custom packet inspection function

•Automatic MDI/MDI-X crossover to detect and correct pair swaps at all operating speeds

•Automatic detection and correction of pair swaps, pair skew and pair polarity

•MDC/MDIO management interface for PHY register configuration

•Interrupt pin option

•Power-down and power-saving modes



Product parameters



Product parameters



Supply current

221mA

number of channels

1

Working temperature (Max)

85℃

Working temperature (Min)

-40℃

voltage

1.8V,2.5V,3.3V

Number of pins

48

package

QFN-48

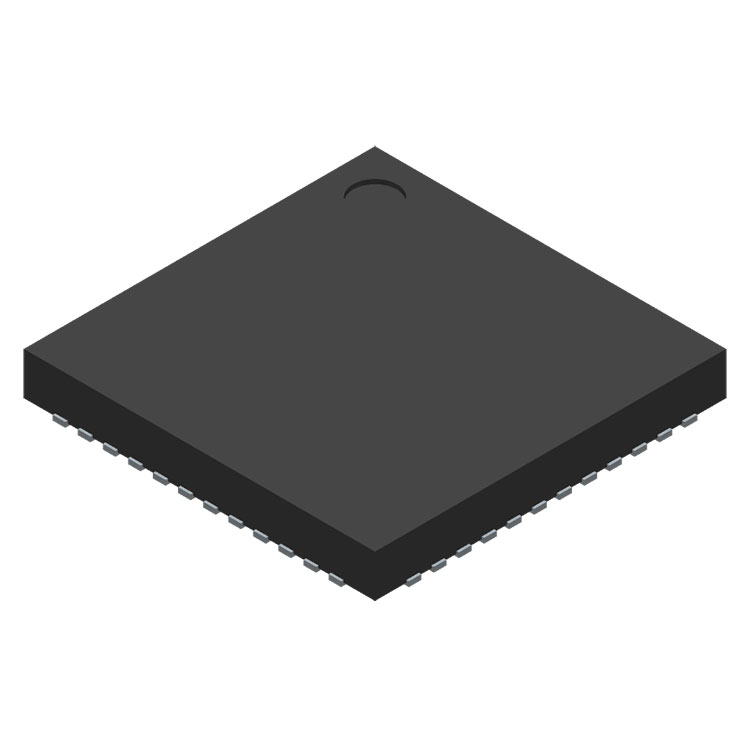

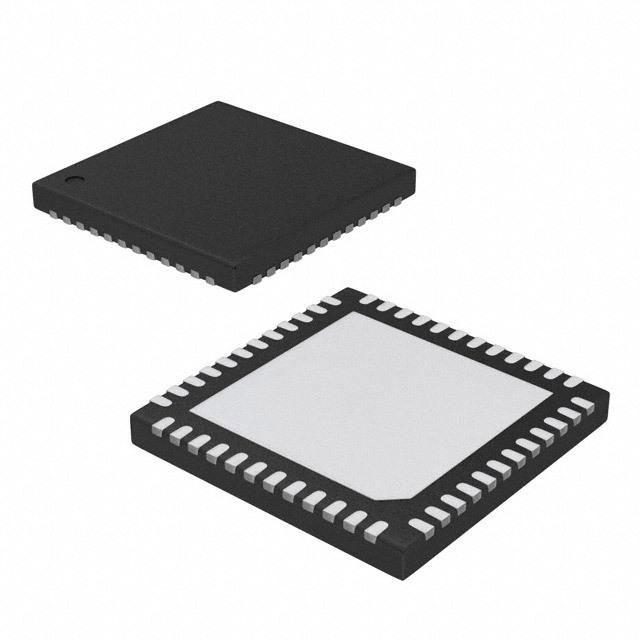

Product picture
