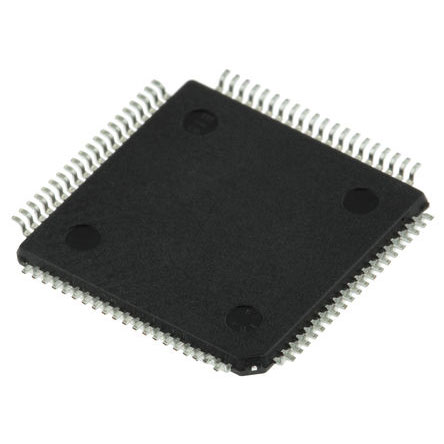

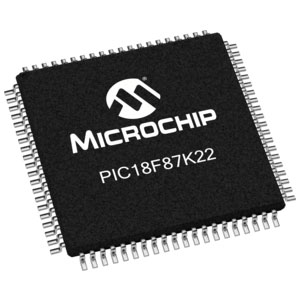

The PIC18F87K22 PTdevice is a chip in Microchip's PIC18F87K22 PT family that combines all the traditional advantages of PIC18 microcontrollers with high computational performance and feature richness at a competitive price. PIC18F87K22 PT devices are cost-effective and the logic choice for many high-performance applications. XT-ShenZhen brings you more PIC18F87K22 PT device information! Welcome new and old customers to cooperate with us! We value every customer's question, all questions will be answered within 24 hours!
The PIC18F87K22 PT device is a chip in Microchip's PIC18F87K22 family that combines all the traditional advantages of PIC18 microcontrollers with high computational performance and feature richness at a competitive price. PIC18F87K22 PT devices are cost-effective and the logic choice for many high-performance applications. XT-ShenZhen brings you more PIC18F87K22 PT device information! Welcome new and old customers to cooperate with us! We value every customer's question, all questions will be answered within 24 hours!
The PIC18F87K22 PT device features an 8-bit high-performance core processor with a frequency of up to 64MHz and a flash memory capacity of up to 128KB. It also has low power features: two-speed oscillator start-up, ultra-low power wake-up, typical 300nA low-power WDT, ultra-low 50mA input leakage, run mode current as low as 5.5µA, idle mode as low as 1.7µA, sleep mode As low as 20mA, RTCC as low as 700mA.
PIC18F87K22 PT devices can also operate with the CPU core disabled, but the peripherals are still active. In these states, power consumption can be further reduced.
PIC18F87K22 PT devices can reduce power consumption during code execution by using the Timer 1 source or the internal RC oscillator to clock the controller.
PIC18F87K22 PT devices can continuously monitor the primary clock source based on a reference signal provided by the internal oscillator. In the event of a clock failure, the controller will switch to the internal oscillator, allowing continued low-speed operation or shutting down the safety application.
PIC18F87K22 PT devices provide ample space for application code, from 32 KB to 128 KB of code space. Program memory flash cells are rated for 10,000 erase/write cycles. A conservative estimate is that the retention period for unrefreshed data is greater than 40 years.
Low power consumption features:
•Power Management Mode:
- Running: CPU on, peripherals on
- Idle: CPU off, peripherals on
- Sleep: CPU off, peripherals off
•Fail-safe clock monitor
•Power Saving Peripheral Module Disable (PMD)
Special microcontroller features:
•On-chip 3.3V regulator
•1024 bytes of data EEPROM
•4K x 8 General Purpose Registers (SRAM)
•At least 10,000 erase/write cycles to Flash program memory
•1,000,000 erase/write data EEPROM memory, typical
•Flash retention time: at least 40 years
•Three internal oscillators: LF-INTRC (31 kHz), MF-INTOSC (500 kHz) and HF-INTOS C (16 MHz)
•Self-programming under software control
•Interrupt priority
•8 x 8 single cycle hardware multiplier
|
Product parameters
|
frequency |
64 MHz |
|
RAM size |
4 KB |
|
|
number of digits |
8 |
|
|
FLASH memory capacity |
128 KB |
|
|
Number of inputs/outputs |
69 Input |
|
|
Operating Voltage |
1.8V ~ 5.5V |
|
|
Operating temperature (Max) |
85℃ |
|
|
Working temperature(Min) |
-40℃ |
|
|
Number of pins |
80 |
|
|
package |
TQFP-80 |
