KSZ8863RLLI

More parameters about the KSZ8863RLLI device will be shown to you by XT-ShenZhen! The KSZ8863RLLI is a highly integrated 3-port on-chip switch IC with the industry's smallest footprint. The KSZ8863RLLI device is the best choice for automotive and industrial applications! XT-ShenZhen has always been committed to providing customers with wholehearted service, your satisfaction is our pursuit! If you have more questions about the KSZ8863RLLI device, please leave us a message! Every customer's message will be answered within 24 hours!

Send Inquiry

Product Description

More parameters about theKSZ8863RLLIdevice will be shown to you by XT-ShenZhen! The KSZ8863RLLI is a highly integrated 3-port on-chip switch IC with the industry's smallest footprint. The KSZ8863RLLI device is the best choice for automotive and industrial applications! XT-ShenZhen has always been committed to providing customers with wholehearted service, your satisfaction is our pursuit! If you have more questions about the KSZ8863RLLI device, please leave us a message! Every customer's message will be answered within 24 hours!



Product Description



The KSZ8863RLLI device primarily supports a new generation of low port count, cost sensitive and energy efficient 10/100 Mbps switch systems. With low power consumption, advanced power management, and sophisticated QoS features such as IPv6 prioritization support, the KSZ8863RLLI device is ideal for IPTV, IP-STB, VoIP, automotive and industrial applications.

The KSZ8863RLLI device primarily supports the green requirements in today's switching systems. Its advanced power management scheme includes per-port power down, software power down, and an energy detection mode that shuts down the transceiver when the port is idle.

The KSZ8863RLLI device also provides a bypass mode for system-level power saving, in which the processor connected to the switch via the MII interface can be shut down without affecting normal switch operation.

The configuration provided by the KSZ8863RLLI device provides flexibility to meet the requirements of different applications:

Two 10/100BASE-T/TX transceivers and one RMII interface

The KSZ8863RLLI device is available in a RoHS-compliant 48-pin LQFP package. Also available in industrial and automotive grades.



Features



Advanced Switch Features

- IEEE 802.1q VLAN supports up to 16 groups (full range of VLAN IDs)

- VLAN ID tag/untag option, per port basis - IEEE 802.1p/q tags inserted or removed on a per port basis (egress)

- Programmable per-port rate limiting at ingress and egress

- Broadcast storm protection with % control (global and per-port basis)

- IEEE 802.1d Rapid Spanning Tree Protocol support - Tail tag mode (add 1 byte before FCS) support at port 3 to inform the processor which ingress port receives the packet and its priority

- Bypass function, when the CPU (port 3 interface) enters sleep mode, the switching function between port 1 and port 2 is automatically maintained

- Supports RMII interface and 50 MHz reference clock output - IGMP snooping (Ipv4) supports multicast packet filtering - Ipv4/IPv6 QoS support.

- MAC filtering function to forward

Comprehensive configuration register access

- Serial Management Interface (SMI) for all internal registers

- MII Management (MIIM) interface for physical registers

- High-speed SPI and I2C interfaces for all internal memories

-I/O pin strapping and EEPROM

- Program selective registers in unmanaged switch mode

- Control registers are dynamically configurable (port priority, 802.1p/d/q, AN...)

QoS/CoS packet priority support

- Per port, 802.1p and DiffServ

- Remaps the 802.1p priority field for each port based on the four priority levels

•Industrial temperature range:–40oC to +85oC

application

•Typical - VoIP phone

- Set-top box/game box

-Automotive-Industrial Control

-IPTV POF-SOHO residential gateway

-Broadband Gateway/Firewall/VPN

- Integrated DSL/Cable Modem

- Wireless LAN Access Point + Gateway - Standalone 10/100 Switch



Product parameters



Product parameters



Supply current

85mA

data rate

100Mbps

Working temperature (Max)

85℃

Working temperature (Min)

-40℃

Supply voltage (Max)

3.456V

Power supply voltage (Min)

2.5V

Number of pins

48

package

LQFP-48

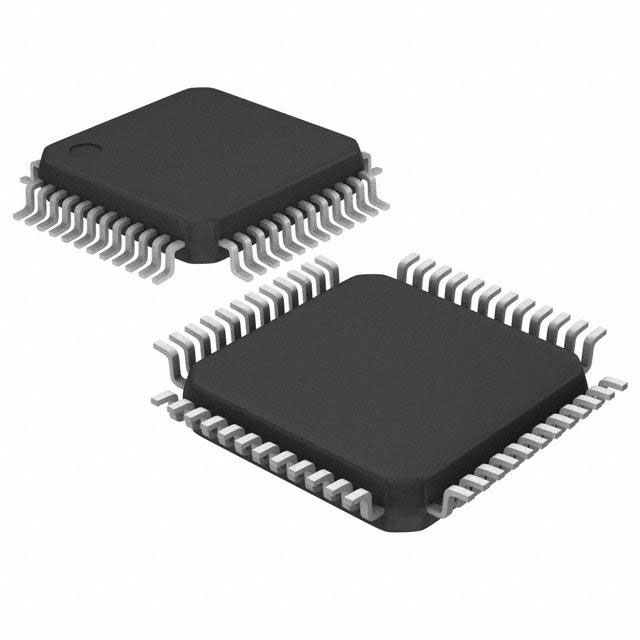

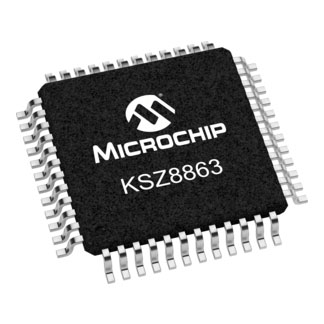

Product picture
