XT-ShenZhen introduces the relevant parameters of ENC28J60-I/ML to you. hoping it is helpful to you! The ENC28J60-I/ML device is a Microchip stand-alone Ethernet controller with an SPI interface featuring an industry standard Serial Peripheral Interface (SPI). Microchip designed it specifically for the Ethernet network interface of any SPI-equipped controller. We are committed to solving customer needs and helping customers overcome the problem of supply! We will answer the questions left by every customer within 24 hours!

Send Inquiry

Product Description

XT-ShenZhen introduces the relevant parameters of ENC28J60-I/ML to you. hoping it is helpful to you! The ENC28J60-I/ML device is a Microchip stand-alone Ethernet controller with an SPI interface featuring an industry standard Serial Peripheral Interface (SPI). Microchip designed it specifically for the Ethernet network interface of any SPI-equipped controller. We are committed to solving customer needs and helping customers overcome the problem of supply! We will answer the questions left by every customer within 24 hours!



Product Description



The ENC28J60-I/ML device is compliant with all IEEE 802.3 specifications.

The ENC28J60-I/ML device restricts incoming packets by combining multiple packet filtering schemes. It also provides an internal DMA module for fast data throughput and hardware-assisted checksum calculation for various network protocols.

The ENC28J60-I/ML device communicates with the host controller via interrupt pins and SPI with clock frequencies up to 20 MHz. Using the ENC28J60-I/ML device requires only two pulse transformers and a few passive components to connect a microcontroller to Ethernet.

The ENC28J60-I/ML device consists of seven main functional blocks:

1. An SPI interface used as a communication channel between the host controller and ENC28J 60.

2. Control register for controlling and monitoring ENC28J60.

3. Dual port RAM buffer for receiving and sending packets.

4. Arbiter that controls access to RAM buffers when requested from DMA, transmit and receive blocks.

5. Explain the bus interface for data and commands received through the SPI interface.

6. A MAC (Media Access Control) module that implements IEEE 802.3 compliant MAC logic.

7. PHY (physical layer) module, which encodes and decodes analog data on the twisted pair interface.



product features



Ethernet Controller Features

•IEEE 802.3™Compliant Ethernet Controller

•Fully compatible with 10/100/1000Base-T networks

•Integrated MAC and 10Base-T PHY

•Supports 1 10Base-T port with automatic polarity detection and correction

•Supports full-duplex and half-duplex modes

•Programmable automatic retransmission in the event of a collision

•Programmable padding and CRC generation

•Programmable automatic rejection of erroneous packets

•SPI interface with clock speeds up to 20 MHz

Physical Layer (PHY) Features

•Loopback mode

•Two programmable LED outputs for link, TX, RX, collision and full/half duplex status

Work

•Six interrupt sources and one interrupt output pin

•25 MHz clock input requirement

•Clock output pin with programmable prescaler

•5V tolerant input



Product parameters



Product parameters



frequency

25.0 MHz

Supply current

160 mA

data rate

10.0 Mbps

FLASH memory capacity

8000 B

Power supply voltage (Max)

3.6 V

Power supply voltage (Min)

3.1 V

Operating temperature (Max)

85℃

Working temperature(Min)

-40℃

Number of pins

28

package

QFN-28

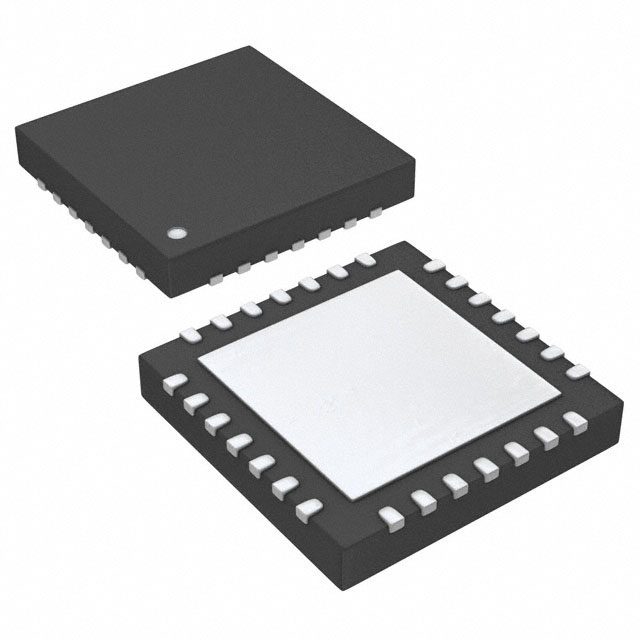

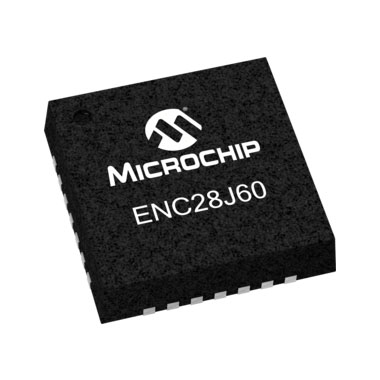

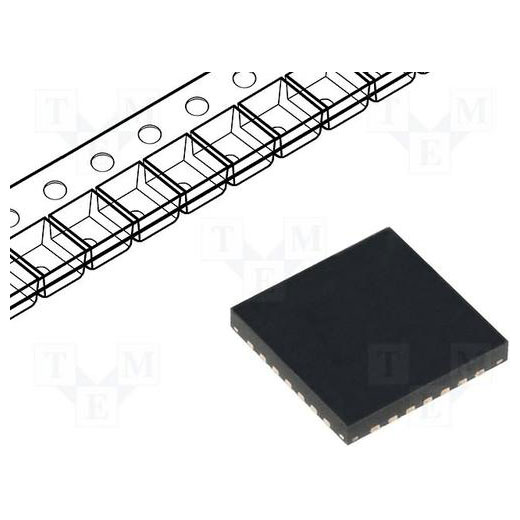

Product picture
